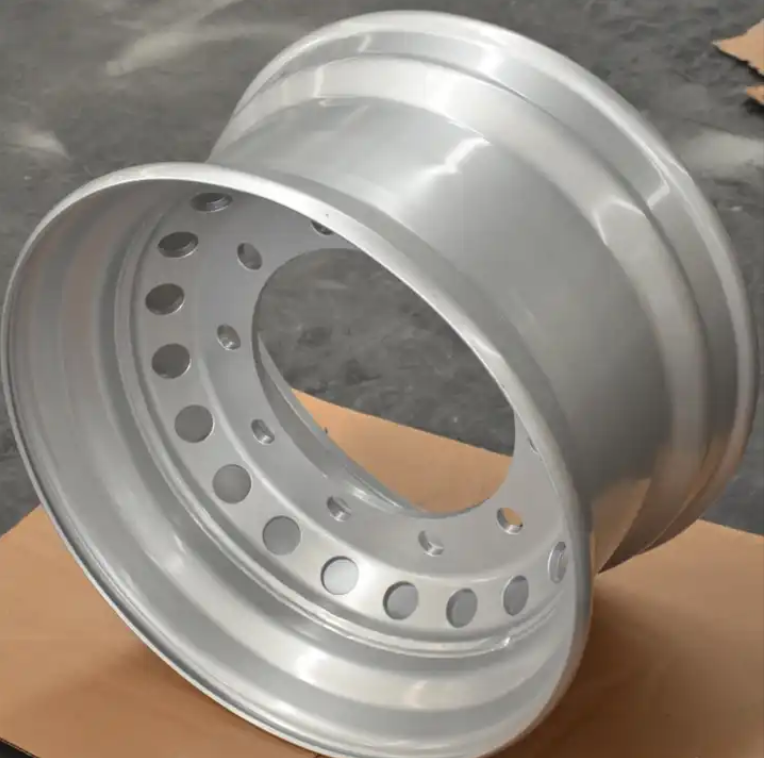

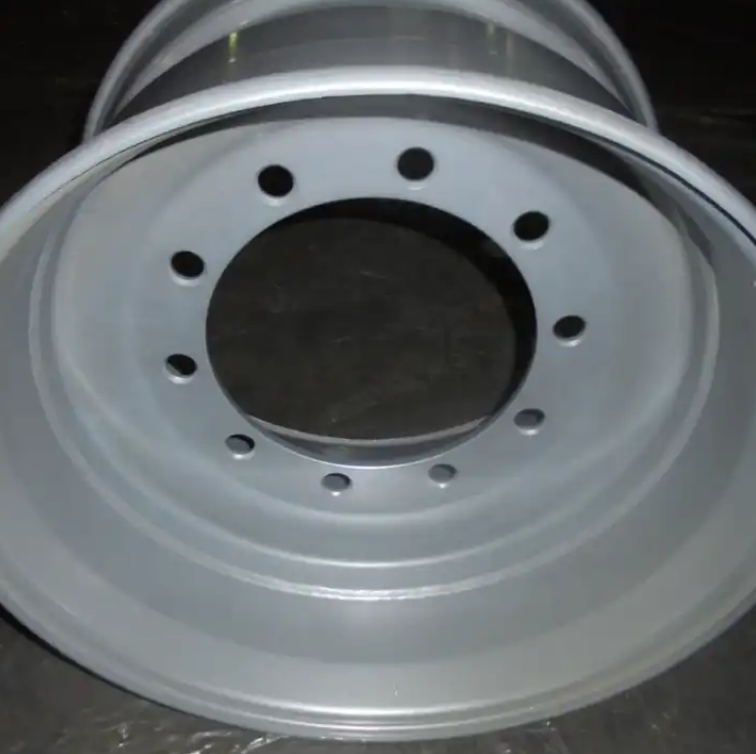

The UWHCO 22.5x11.75 steel rim is designed for modern tubeless truck tire systems. Manufactured from Q345B premium steel with advanced production technology, this rim offers superior strength-to-weight ratio and excellent fatigue resistance.
Q345B high-tensile steel for maximum durability under heavy loads
Tubeless design compatible with 12R22.5 and 295/80R22.5 tires
Precision roll-formed rim profile for perfect tire bead seating
10-bolt mounting with precision-machined bolt holes
Available in silver powder coat or matte black finish
DOT compliant for North American markets
Perfect for heavy-duty tractor heads, semi-trailers, cargo trucks, and long-distance transportation vehicles.

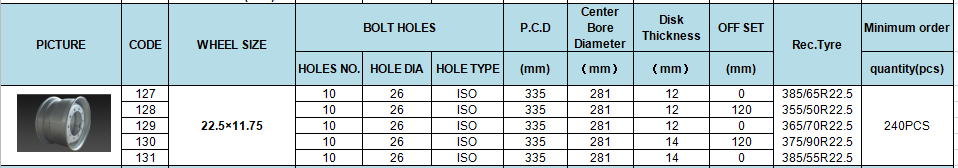

| Parameter | Value |
| Rim Size | 22.5 x 11.75 |
| Type | Tubeless (TL) |
| Bolt Holes | 10 holes |
| PCD | 335 mm |
| Center Bore | 281 mm |
| Material | Q345B Premium Steel |
| Finish | Silver / Matte Black Powder Coat |
| Weight | ~42 kg |
| Application | Heavy Trucks, Semi-trailers |
| Certification | ISO/ATF 16949, DOT |
Individual wrapping, palletized with steel strapping. 20ft container: ~180-220 pcs.
